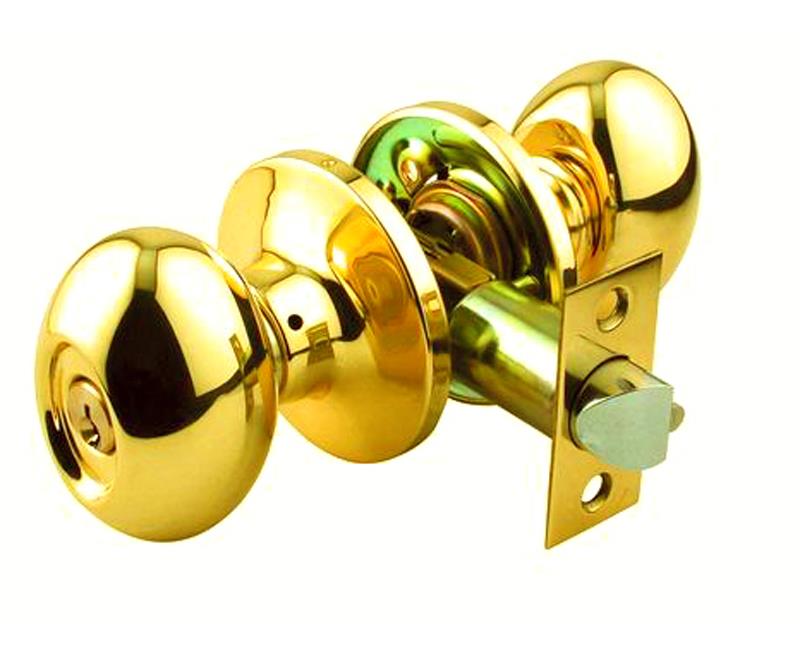

S6542
Introduction:
* Tubular lockset is an economical and easy to install product
particularly adaptable for residential use.
* Guaranteed for over 100,000 life cycles.
* Can be keyed alike with deadbolts to improve security.
* Can be master keyed in a simple combination for family and facility use.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is made of either wrought stainless steel or brass.
* 1-piece reinforced knob as standard, esthetic 2-piece knob available upon request.
* 590H、607H are specially designed to suit the requirement of plastic steel door.
Features:
Latch Bolt
* Dead locking for keyed functions.
* Adjustable backset 2-3/8" or 2-3/4"(60mm/70mm) as standard.
* Adjustable 1" round drive-in 4-way latch is available upon request.
* 2-1/4"(57mm) curved lip strike as standard.
* 2-3/4"(70mm) strike available upon request.
Door Thickness
* Adjustable 1-3/8" to 1-3/4"(35mm to 45mm)as standard.
* 50mm(2") up to 70mm(2-3/4") for 590H and 607H.
Handing
* Fully reversible for left or right hand doors.
Product Detail

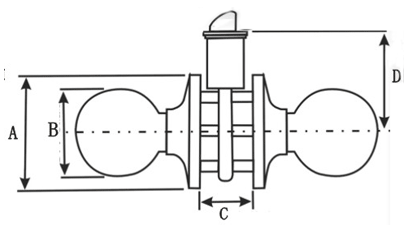

TUBULAR LEVERSET UNIT(MM) | ||||
MODEL/SIZE | A | B | C | D |
S6542 | 65 | 54 | 35-45 | 60(70) |
![]() |
* DoorThickness: 35mm-45mm(1 1/8"-2) * Latch Backset: 60mm(2 3/8")&70mm(2 3/4") *Rose Design: 65mm * Key Design: Kwikset,C4,Computerized Key *Cylinder Construction: Master Key,Construction Key |
FUNCTION DIAGRAM |
FEATURE | FEATURE | ||
OUTSIDE | BOLT LATCH | INSIDE | ||
![]() Outside Inside Entrance(ET) |
Cylinder | Dead Latch | Button |
* Unlocked by key from outside when button locking. * Unlocked by konb/lever form etther side when button unlocked. |
![]() Outside Inside Privacy(BK) |
Emergency Keyway |
Latch | Button |
* Unlocked by emergency key or shim form outside when button locking. |
![]() Outside Inside Passage(PS) |
Blank | Latch | Blank |
* Both knob/lever always unlocked. |
![]() Outside Inside Storeroom(RS) |
Cylinder |
Dead Latch |
Blank |
* Outside knob/lever always fixed. * Unlocked by key form ouside. |
FINISH DESCRIPTION
![]() |
![]() |
![]() |
![]() |
SATIN STAINLESS STEEL |
POLISHED STAINLESS STEEL | SATIN BRASS | POLISHED BRASS |
SS(US32D) | PS(US26) | SB(US4) | PS(US3) |
![]() |
![]() |
![]() |
|
ANTIQUE COPPER | ANTIQUE BRASS | OIL BRONZE |
|
AC(US11) | AB(US5) | US10B |
|
