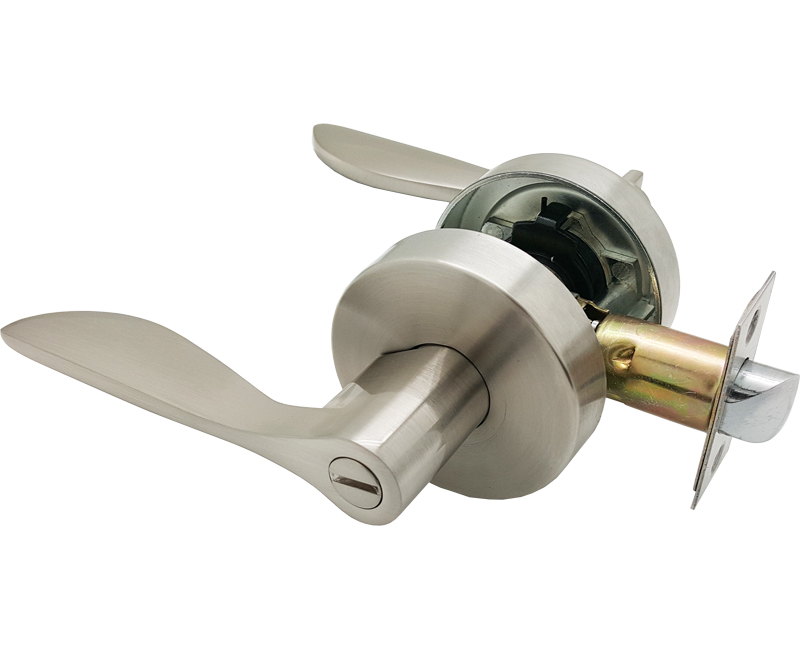

3703
Introduction:
* Tubular
lockset is an economical and easy to install product particularly adaptable for
residential use.
* Guaranteed for over 150,000 life
cycles.
* Can be keyed alike with deadbolts to improve
security.
* Can be master keyed in a simple combination for
family and facility use.
* Solid steel chassis and latch case,
zinc plated for corrosion resistance.
* Exposed trim is made of
zinc die-casting electro-plated or solid brass.
* 1-piece
reinforced knob as standard, esthetic 2-piece knob available upon
request.
Features:
Latch Bolt
*
Dead locking for keyed functions.
* Adjustable backset 2-3/8" or
2-3/4"(60mm/70mm) as standard.
* Adjustable 1" round drive-in
4-way latch is available upon request.
* 2-1/4"(57mm) curved lip
strike as standard.
* 2-3/4"(70mm) strike available upon
request.
Handing
* Fully reversible for left or
right hand doors.
Product Detail
TUBULAR LEVERSET UNIT(MM) | ||||
MODEL/SIZE | A | B | C | D |
3703 | 65 | 120 | 35-45 | 60(70) |
![]() |
*DoorThickness: 35mm-45mm(1 1/8"-2) *Latch Backset: 60mm(2 3/8")&70mm(2 3/4") *Rose Design: 65mm *Key Design: Kwikset,C4,Computerized Key *Cylinder Construction: Master Key,Construction Key |
FUNCTION DIAGRAM |
FEATURE | FEATURE | ||
OUTSIDE | BOLT LATCH | INSIDE | ||
![]() Outside Inside Entrance(ET) |
Cylinder | Dead Latch | Button |
* Unlocked by key from outside when
button locking. * Unlocked by konb/lever form etther side when button unlocked. |
![]() Outside Inside Privacy(BK) |
Emergency Keyway |
Latch | Button |
* Unlocked by emergency key or shim form outside
when button locking. |
![]() Outside Inside Passage(PS) |
Blank | Latch | Blank |
* Both knob/lever always
unlocked. |
![]() Outside Inside Storeroom(RS) |
Cylinder |
Dead Latch |
Blank |
* Outside knob/lever always fixed. * Unlocked by key form ouside. |
FINISH DESCRIPTION
![]() |
![]() |
![]() |
![]() |
SATIN NICKEL |
BRIGHT CHROME | SATIN BRASS | POLISHED BRASS |
SN(US32D) | PS(US26) | SB(US4) | PB(US3) |
![]() |
![]() |
![]() |
|
ANTIQUE COPPER | ANTIQUE BRASS | OIL BRONZE |
|
AC(US11) | AB(US5) | US10B |
|
